Place of Origin:
China
اسم العلامة التجارية:
RealRun
إصدار الشهادات:
ISO9001, SGS, Rohs, Reach
Model Number:
BH2.0*6.4-nP 10P

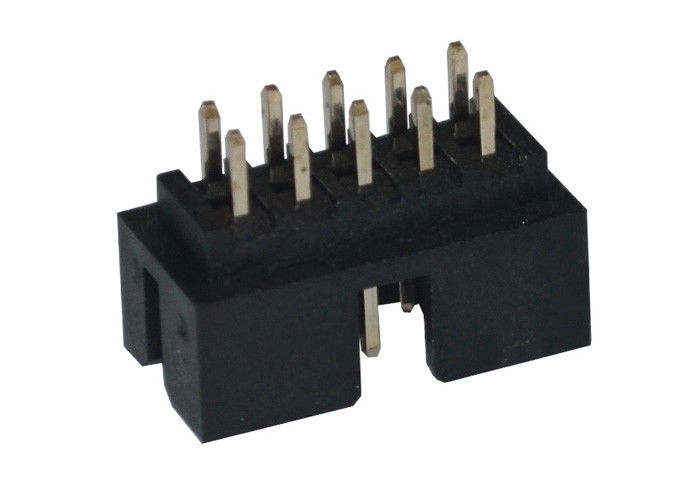

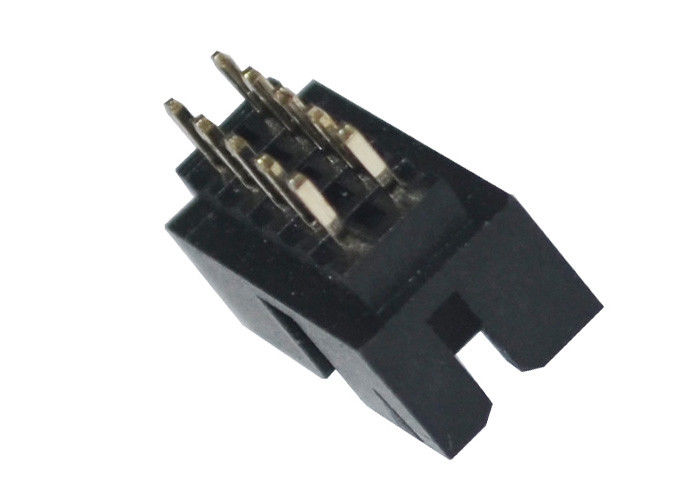

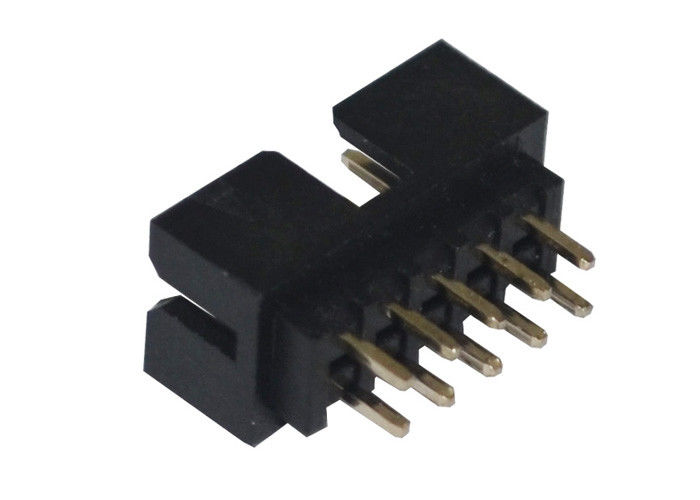

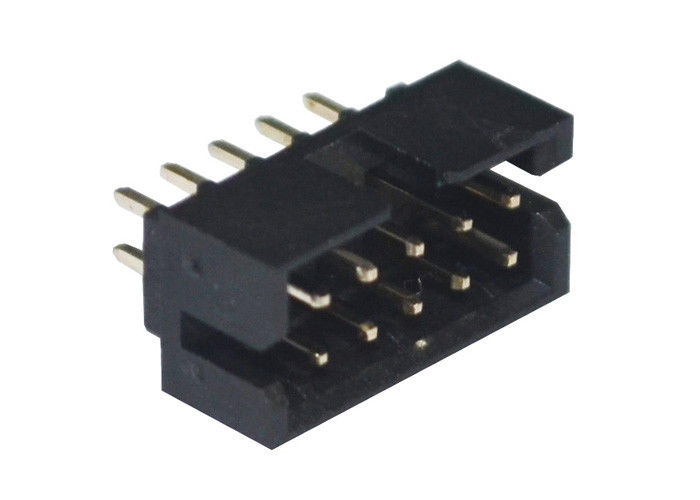

DIP 2.0mm 10 Pin Straight Pin Header Connector High Temperature Resistantce
|
Current Rating |
2.0AMP |
|
Contact Resistance |
20mΩ Max |
|
Withstand Voltage |
500V AC/DC |
|
Insulation Resistance |
1000mΩ Min |
|
Operation Temperature |
-40℃ to +105℃ |
|
Contact Material |
Brass |
|
Contact Plating |
Au or Sn over Ni |
|
Insulator Material |
LCP +30％GF( UL94V-0 ) |
|
Product name: Box header connector |
||
|
1. Product features: high temperature resistant to high voltage electrical conductivity |
||
|
2. Product material: PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating |
||
|
3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal |
